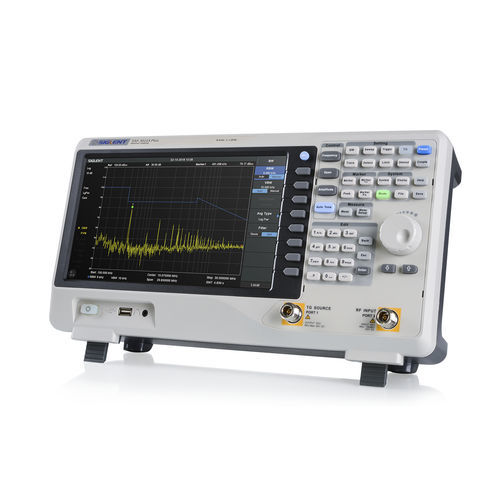

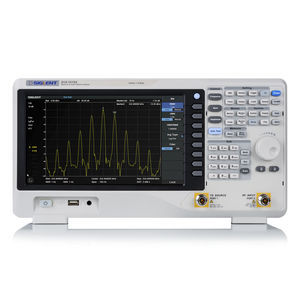

Signal analyser SSA3000X Plus Series

monitoringnoisespectrum

The SIGLENT SSA3000X Plus series spectrum analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance. Key Features •Spectrum Analyzer Frequency Range from 9 kHz up to 1.5 GHz / 2.1 GHz / 3.2 GHz /7.5 GHz •-165 dBm/Hz Displayed Average Noise Level (Typ.) •-98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.) •Level Measurement Uncertainty < 0.7 dB (Typ.) •1 Hz Minimum Resolution Bandwidth (RBW) •Preamplifier (Std.) •Tracking Generator (incl. free of charge) •Analog and Digital Signal Modulation Analysis Mode (Opt.) •Reflection Measurement Kit (Opt.) •EMI Filter and Quasi-Peak Detector Kit(Opt.) •Advanced Measurement Kit (Opt.) •10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported •Web Browser Remote Control on PC and Mobile Terminals and File Operation
