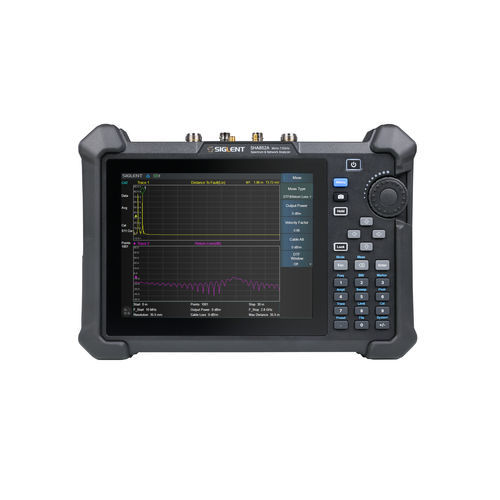

Signal analyzer SHA850A Series

monitoringvector networkspectrum

SIGLENT SHA850A, a handheld portable spectrum analyzer and cable-and-antenna analyzer, is a powerful and flexible tool for those field and outdoor RF applications. With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. A spectrum analyzer, including built-in amplifier and independent signal source, fast scanning speed, high sensitivity, can achieve broadcast monitoring, channel power scanning, wireless interference location, power monitoring, electromagnetic compatibility, and other functions. A cable and antenna tester including built-in DC voltage bias, with a 1-path-2-port vector network analysis function, can measure TDR, VSWR, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart, etc. Key Features •Spectrum Analyzer Frequency Range from 9 kHz up to 3.6 GHz/7.5 GHz •Cable and Antenna Test Frequency Range from 100 kHz up to 7.5 GHz, Distance To Fault and Time Domain Analysis •Vector Network Analyzer (Opt.*) Frequency Range from 100 kHz up to 7.5 GHz, Bias out up to 32VDC (Opt.*) •-165 dBm/Hz Displayed Average Noise Level (Typ.) •-104 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.) •Full bandwidth source (Opt.*) and standard preamplifier •Analog and Digital Signal Modulation Analysis Mode (Opt.*) •Advanced Measurement Kit with Waterfall chart (Opt.*) •GPS Receiver and GPS Logging (Opt.*) •Typical working time 4 hours, 3.2 kg net weight, 8.4 lnch Multi-Touch Screen
