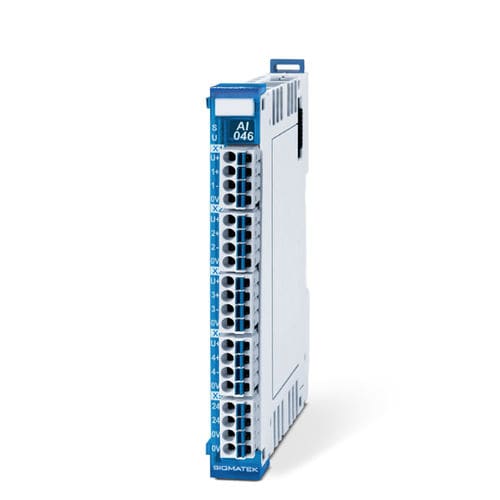

Analog input module AI 046

4 analog inputsvoltageDIN rail

4 analog inputs (18 bits) Measurement range -11 … +11 V or -1.1 … +1.1 V For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet. Analog Inputs Type - Voltage Number - 4 Resolution - 18 bits Measurement range - -11 … +11 V or -1.1 … +1.1 V Measurement precision - ±0.030 % or ±0.045 % of maximum measurement value Conversion time per channel - ≥ 10 μs Cable break monitor - Yes Hardware filter - 10 kHz, low pass 3rd order (differential mode); 100 kHz, low pass 1st order (common mode) Software filter - configurable Galvanic isolation - Yes Mechanical Features Dimensions - 12.5 x 104 x 72 mm (W x H x D) Protection type - IP20 Article Number/Certification Article number - 20-009-046 Standardization/­certification - designed according to UL
