Single-phase servo-drive DIAS Drive 100three-phaseasynchronouslinear
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase, single-phase
- Type
- asynchronous, linear
- Number of axes
- multi-axis
- Product applications
- control
- Voltage
- 230-480 V
- Other characteristics
- compact, integrated, modular
- Intensity
Max.: 18 A
Min.: 4 A
- Output power
3 kVA
(4.07886 hp)
Description

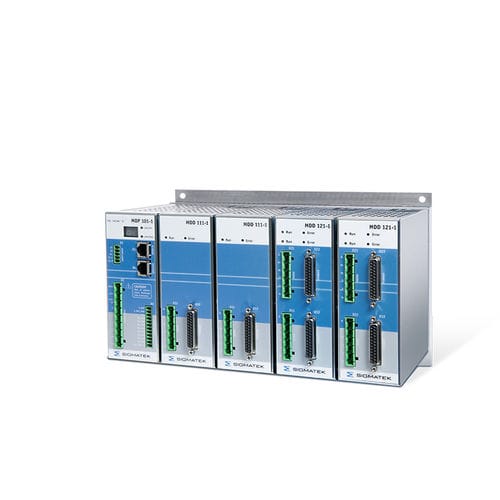

The DIAS Drive 100 series is a modular servo drive system. Conceived for highly dynamic machines in the mid and lower power range, it convinces with a very compact design and optimized loss. Per component, up to 8 servo axes are possible - supplied by a power module (MDP). The modules can be simply mounted on the carrier (MDM) with a snap-lock mechanism.
DIAS Drive 100 – Hot Facts
The modules are mounted onto a module carrier with simple Snap-on technology. With 8 axes for example, an installation space of only 300 x 155 x 152 mm (W x H x D) is required.
Power module for 1-8 axes (MDP)
Axis module for 1 or 2 servo drives (MDD)
Control of servo, linear, torque and asynchronous motors
All common feedback systems
Safety Function: SS1 and STO integrated (TÜV-certified)
