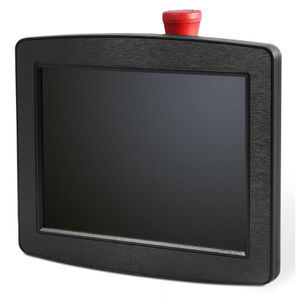

Resistive touch screen operating panel HZS 351mobile320 x 240TFT LCD
Add to favorites
Compare this product
Characteristics
- Interface
- resistive touch screen
- Mounting
- mobile
- Resolution
- 320 x 240
- Screen type
- TFT LCD
- Connectivity
- CAN
- Applications
- for control, visualization, monitoring
- Screen size
3.5 in
Description
Visualize, operate and monitor
+230 V AC supply voltage
Internal temperature sensor (0 … +50 °C/12 bits)
Display deactivated in idle mode
Performance Data
Internal program and data memory -
8 MB
Internal storage device -
1 MB Flash
Interfaces -
1x CAN
Control Elements -
touch screen (analog resistive)
Supply voltage -
230 V AC ±10 %, 50 Hz
Display
Ratio -
4:3
Mechanical Features
Dimensions -
93.3 x 93.3 x 12.1 mm (W x H x D)
Material -
plastic
color: RAL9010
Weight -
circa 220 g
