LED lighting QLLR525SSL Series

lamphighintegrated

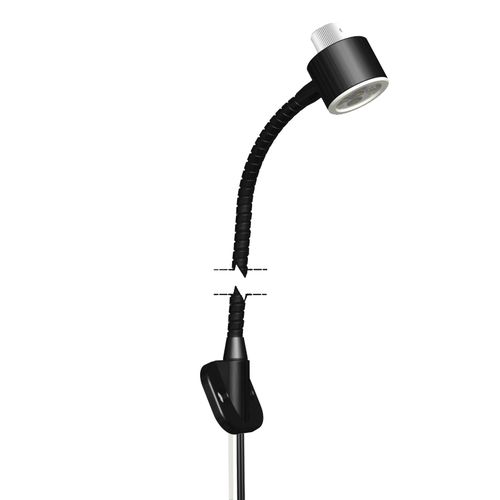

Timetable book reading lamp dimmable, white, with screw flange Timetable book reading lamp with integrated high performance LEDs and optic for a viewing angle of 32°. Flexible metal tube with mounting flange, on/ off rotary switch with dimming function at the rear side of the luminaire head. Specification PC board: equipped with 5 chip LEDs Length connecting cable: 500 mm Stranded wire: 0,5 mm² according to EN50306-2 Polarity marking: Cathode is marked by a black shrink tube (25mm) Operating voltage: 16,8 - 32V DC Weight with 300mm flexible tube: max. 160g Weight with 500mm flexible tube: max. 210g Mounting: 2 countersunk head screws DIN 7991 M4 or DIN 7982 Ø4,2 max. tightening torque: 2,8 N·m (M4) / 3,5 N·m (Ø4,2) Reading lamp complies with the standards: EN50155, EN50121, EN45545
