CH4 analyser S4 SOLAR XPLORE
methanehydrocarbon gastotal hydrocarbon

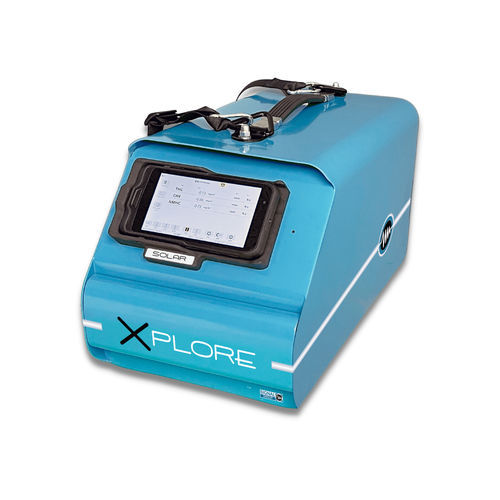

CH4 analyser - S4 SOLAR XPLORE - Signal Group Ltd - methane / hydrocarbon gas / total hydrocarbon
CH4 analyser - S4 SOLAR XPLORE - Signal Group Ltd - methane / hydrocarbon gas / total hydrocarbon
CH4 analyser - S4 SOLAR XPLORE - Signal Group Ltd - methane / hydrocarbon gas / total hydrocarbon - image - 2
CH4 analyser - S4 SOLAR XPLORE - Signal Group Ltd - methane / hydrocarbon gas / total hydrocarbon - image - 3
CH4 analyser - S4 SOLAR XPLORE - Signal Group Ltd - methane / hydrocarbon gas / total hydrocarbon - image - 4
CH4 analyser - S4 SOLAR XPLORE - Signal Group Ltd - methane / hydrocarbon gas / total hydrocarbon - image - 5
Add to favorites
Compare this product


Characteristics

Measured entity
methane, CH4, hydrocarbon gas, total hydrocarbon, solvent
Application domain
monitoring, automotive
Measured value
concentration
Configuration
compact, portable
Technology
flame ionization
Protection level
rugged, rugged
Other characteristics
simultaneous, VOC

Description

The latest addition to our range of advanced FID analysers, the S4 SOLAR XPLORE is a compact, portable version of our popular S4 SOLAR rack mount analyser. With built-in features such as a detachable tablet with integrated wireless connection, a precision monobloc heated FID and an optional integrated Zero air generator, the S4 SOLAR XPLORE can be fitted with dual FID detectors for simultaneous monitoring of THC, NMHC and methane. Gases Sensed - Methane (CH4), Non-methane Hydrocarbons (NMHC), Total Hydrocarbons (THC) Technology - Flame Ionisation Detection Key Features • Single or dual detectors • Integrated zero air generator • Rugged and portable • Wireless tablet interface • Typical warm up 30 minutes • Precision monobloc heated FID • Simultaneous monitoring of THC, NMHC & Methane • Relevant Standards: EN12619 EN15267-3 EN15267-4 ISO25140 Method 25 Method 25a EURO VI/VII ARP1256D CPA 2015-C174 APPLICATIONS • Air separation • Solvent/VOC abatement/scrubber efficiency • Thermal oxidiser control/monitoring • Process control • Combustion research • Biomass combustion monitoring • Carbon bed breakthrough detection • Gas purity • Locomotive/automotive/marine combustion engine exhaust emissions • Gas turbine exhaust emissions • Vehicle emissions • Source emissions • Stack testing • Fermentation monitoring • Continuous emissions monitoring (CEM) • Container leakage control/monitoring • Safety monitoring • Compliance monitoring • Landfill • Semiconductor manufacturing process monitoring • Part B processes • Environmental permit • Paintshop emissions • Portable FID

Catalogs
