VOC analyser S4 SOLAR

CH4total organic carbontotal hydrocarbon

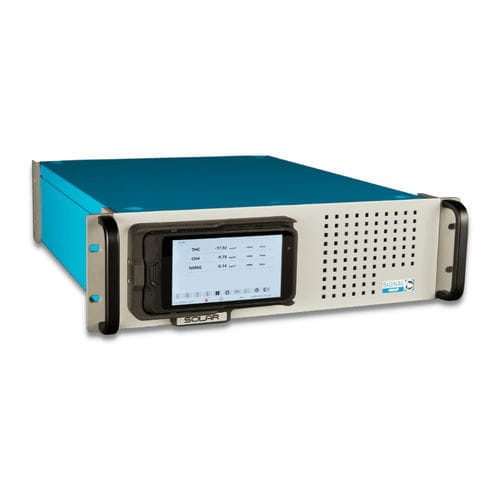

The S4 SOLAR Heated FID VOC analyser employs Flame Ionisation Detectors (FID) technology and is designed for a standard 19” rack, with heated and non-heated options. A dual detector version is also available for the simultaneous measurement of both methane and non-methane hydrocarbons. Gases Sensed - Methane (CH4), Non-methane Hydrocarbons (NMHC), Total Hydrocarbons (THC), Volatile Organic Carbon (VOC) Technology - Flame Ionisation Detection Key Features • Fixed and portable versions • ‘Hot’ and ‘Cold’ versions • Totally automatic operation • Wireless tablet Software suite for use over ethernet or RS232 • Precision monobloc FID • Trace PPM measurements standard • High range % available Relevant standards: EN12619 EN15267-3 ISO25140 Method 25 Method 25a EURO VI/VII ARP1256D CPA 2015-C174 Applications • Air separation • Flue gas emissions monitoring • Process emissions monitoring • Solvent/VOC abatement/scrubber efficiency • Thermal oxidiser control/monitoring • Process control • Combustion research • Biomass combustion monitoring • Carbon bed breakthrough detection • Gas purity • Locomotive/automotive/marine combustion engine exhaust emissions • Gas turbine exhaust emissions • Vehicle emissions • Source emissions • Stack testing • Fermentation monitoring • Continuous emissions monitoring (CEM) • Container leakage control/monitoring • Safety monitoring
