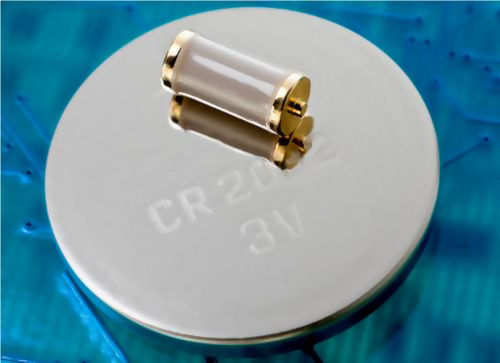

3-axis tilt sensor SQ-SEN-200

digitalminiature

The SQ-SEN-200 is an omni-directional ultra low power tilt & vibration sensor manufactured by Signal Quest. This device functions similarly with a normally closed switch that chatters open and closed when vibrated or tilted. Moreover, it is a sensor which moves omnidirectional and operates in any types of mounting and alignment unlike other rolling ball sensors. The SQ SEN 200 runs on a nano power as little as 50 nA and is industrial rated with 10 year working life and can handle temperatures from -40ºC up to 85ºC. Moreover, it is made in the USA in size 3.3 mm x 6.9 mm. This produce complies with RoHs and REACH and is free from lead as well as Halogen.
