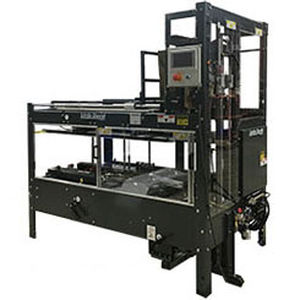

Automatic case erector CF-25SB

adhesive tapebottom sealerfor the pharmaceutical industry

Narrow box Industrial grade case erector that forms and bottom-seals corrugated cases at speeds up to 15 cases per minute. Minimal Setup Intuitive changeover feature saves time and increases efficiency Compact Footprint Case flow technology allows for in-line, compact footprint Superior Performance Patent pending design mechanically squares boxes at side belt entrance The CF-25SB is a fully automatic, industrial grade uniform case erector designed to form and bottom seal corrugated boxes at speeds up to 15 cases per minute. With a minimum case width of 88.9 mm (3.5 in), this side belt erector was designed for the co-packer, electronics, personal care, and pharmaceutical industries. ■ Patented case flow technology allows for in-line, compact footprint ■ Patent pending technology mechanically squares boxes at side belt entrance ■ Box maintains squareness due to common shaft driven belt speeds ■ Allen Bradley Micro 820 PLC ■ Eaton HMI ■ Chain-driven powered hopper positively drives the cases toward the extraction point vs gravity hopper which can miss feed ■ Powerful 1/3 HP high efficiency ■ UL Listed 508A enclosed panel certification ■ Fully guarded ■ Magnetic interlocking gate restricts access to moving parts and shuts off air and electric when gates are opened Versatility ■ 150 load on the fly case capacity, accessible from either side of machine ■ Simple and efficient tool-less case changeover Durability ■ 24/7 operation ■ Constructed of 10 and 12 gauge steel with solid 4 post nested construction ■ Linear bearings and hardened sprockets ■ Sealed, maintenance free gear boxes
