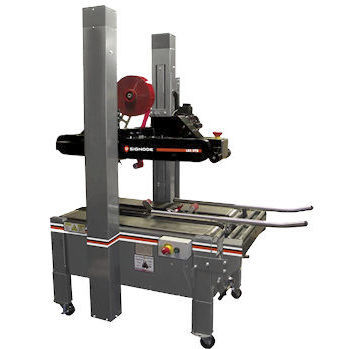

Four-flap case sealer LDX-UTB

adhesive tapesemi-automatic

This fully welded, tubular steel, top and bottom drive case sealer is ideal for large runs of the same size cases, at high speeds. Maximizes Productivity Seals uniform cases with a belt speed of up to 47.25 meters (155') per minute. Simplifies Maintenance Easy access to motors, electrics and belts facilitate quick and easy maintenance and repair. Production Versatility Manual box width and height adjustments for simple and easy box changeover. Robust Design Welded tubular steel construction, reinforced critical stress points and lightweight removable access panels. The LDX-UTB is a semi-automatic case sealer designed for processing large runs of the same size box. The LDX-UTB requires manual adjustments to the top drive (for the height of the box) and side rails (for the width of the box). Cases are top and bottom sealed with 50 mm (2") to 76 mm (3") pressure sensitive tape using the latest CaseLocker 60 tape cartridges. ■ Operator friendly self-centering side rails and adjustable top drives. ■ Continuous belt drive speed: Standard: 35.05 meters/min (115'/min) High Speed: 47.25 meters/min (155'/min). ■ Compact footprint. ■ Expansive case range. ■ Quick changeover. ■ Converts from 50 mm (2") to 76 mm (3") tape in the field. ■ Ideal for 24/7 operations. ■ Powerful Leeson gear motors, 1/3 HP bottom drive and 1/6 HP top drive. ■ Heavy duty fully welded rectangular/ tubular and formed sheet metal construction. ■ Dual mast construction with case hardened tracks and rollers.
