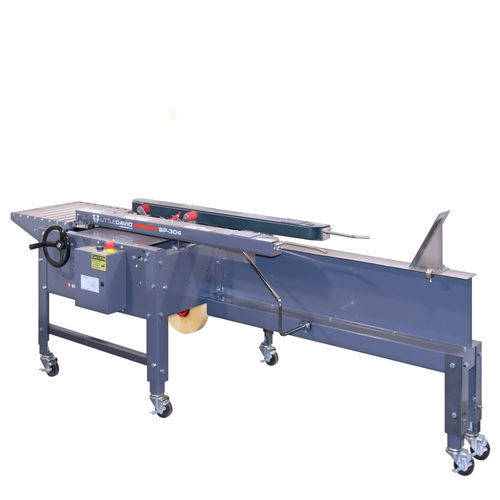

Semi-automatic case former-sealer SP-304 BO

bottom sealer

The SP-304 BO (bottom-only) is a semi-automatic case erecting solution capable of facilitating the forming of up to 24 cases per minute. Increases Productivity "T"-rail pack station and flap folding assist can increase output as much as 40% over hand sealing. Easy Operation Non-contact switches (photo eyes) trigger automatic width adjustment of belt arms. Portable Design Ideal for batch runs, economical alternative to a fully-automatic machine. Simplified Maintenance Self-centering belts and lubrication-free tape cartridges for easy operation. The SP-304 BO is a semi-automatic case erecting solution capable of facilitating the forming of up to 24 cases per minute. The SP-304 BO is an ideal machine for erecting and bottom-sealing cases for use at a later time. The SP-304 BO comes with extended side belts which are manually adjusted for various case sizes. Performance ■ Plug-in operation ■ Universal folding bar folds bottom flaps ■ Minimal operator training required ■ Self-centering belts ■ Custom made "T"-rail pack station made to support your smallest width case size Versatility ■ Tapes boxes from 89 mm (3.5 in) to infinity in height ■ Non-contact switches (photo eyes) trigger automatic width adjustment of belt arms ■ Magnetic, movable on/off controls for easier operator use on either side of the machine Durability ■ Sealed drive system ■ Heavy duty linear bearings on 1" diameter Thompson shaft ■ CaseLocker 60™ tape cartridge requires no lubrication
