Semi-automatic case former-sealer SP-304R BO

adhesive tapebottom sealer

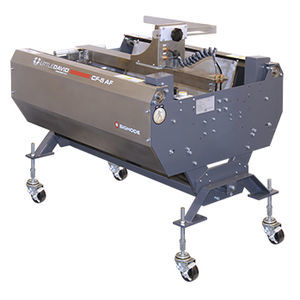

Semi-automatic random case erector that utilizes a side belt to move cases through a folding area and over the tape cartridge. Increases Productivity "T"-rail pack station and flap folding assist can increase output as much as 40% over hand sealing Easy Operation Non-contact switches (photo eyes) trigger automatic width adjustment of belt arms Portable Design Ideal for batch runs, economical alternative to a fully-automatic machine Simplified Maintenance Self-centering belts and lubrication-free tape cartridges for easy operation The Little David® SP-304R-BO (Random, Bottom Only) is a semi-automatic random case erecting solution capable of facilitating the forming of up to 12 cases per minute*. The SP-304R-BO is an ideal machine for erecting and bottom-sealing random cases for those utilizing a variety of box sizes. Performance ■ Plug-in operation ■ Universal folding bar folds bottom flaps ■ Minimal operator training required ■ Self-centering belts ■ Custom made "T"-rail pack station made to support your smallest width case size ■ Alleviates twisting motion known to cause carpal tunnel syndrome ■ Knife guard system of the CaseLocker 60™ tape cartridge allows the blade to be exposed only when the rollers have been depressed Versatility ■ Tapes boxes from 89 mm (3.5 in) to infinity in height ■ Non-contact switches (photo eyes) trigger automatic width adjustment of belt arms ■ Magnetic, movable on/off controls for easier operator use on either side of the machine Durability ■ Sealed drive system ■ Heavy duty linear bearings on 1" diameter Thompson shaft ■ CaseLocker 60™ tape cartridge requires no lubrication
