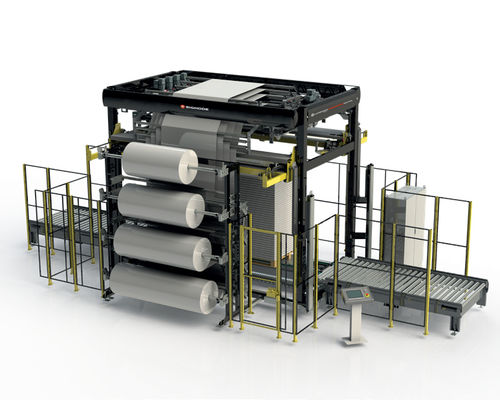

Vertical stretch wrapping machine Multi FleXL
automaticpalletwith rollers

Vertical stretch wrapping machine - Multi FleXL - SIGNODE - automatic / pallet / with rollers
Vertical stretch wrapping machine - Multi FleXL - SIGNODE - automatic / pallet / with rollers
Vertical stretch wrapping machine - Multi FleXL - SIGNODE - automatic / pallet / with rollers - image - 2
Vertical stretch wrapping machine - Multi FleXL - SIGNODE - automatic / pallet / with rollers - image - 3
Add to favorites
Compare this product


Characteristics

Type
vertical
Operating mode
automatic
Product applications
pallet
Other characteristics
five-sided, with rollers
Height

4,500 mm
(177 in)

Width

2,600 mm
(102 in)

Length

Max.: 5,000 mm
(197 in)

Min.: 3,600 mm
(142 in)

Maximum pallet length

Max.: 3,200 mm
(125.98 in)

Min.: 600 mm
(23.62 in)

Maximum pallet width

Max.: 1,700 mm
(66.93 in)

Min.: 400 mm
(15.75 in)

Capacity

150 p/h

Description

For large format wrapping. Can be configured with 4 film rolls. Selects film size with excellent fit for each load size. Service at floor level. The Multi FleXL stretch hood machine offers the ideal combination of function and cost in order to reduce film usage and improve the quality of the wrapping, while achieving required load containment. The Multi FleXL hooder protects products from the elements while stabilizing them for transport. It features a variety of film patterns, including fully closed hoods, film sleeves, short hoods, and film reinforcement capabilities. ■ For large format handling The Multi FleXL offers a high level of flexibility with a variety of load sizes which can be wrapped in one machine. The Multi FleXL is capable of wrapping very large units up to 3200 x 1700 mm (126 x 66.9 in) with a maximum height of 3500 mm (137.8 in). ■ Increases load protection while reducing costs The Multi FleXL features a film unwinding technology that enhances corner protection by minimizing thin and fragile film usage on the corners of loads, and provides strength and stability. This innovative technology reduces packaging costs by utilizing less film consumption. ■ Simplifies operation and maintenance The Multi FleXL features an intuitive HMI to streamline the control and monitoring of the wrapping process. Plus, for routine maintenance, a patented top-down system allows for easier and faster servicing. Film replacement as well as other interval up-keep requirements are completed at the floor level, allowing for ease of maintenance.
