Automatic elevator

for the food industrycustomstainless steel

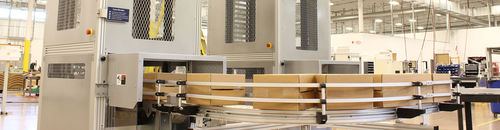

The Simplimatic® Continuous Flow Case Elevator/Lowerator provides a means of raising or lowering heavy or large payloads between conveyors at different elevations. The Continuous Flow Elevator is a great choice if floor space or budgets do not allow for the installation of a traditional Simplimatic Spiral Elevator or other spiral conveyor systems. Due to its relatively high speed, large payload capacity and full-bottom support of the product, the Continuous Flow Elevator is commonly used to convey food and beverage cases, bagged products, trays, totes, and other goods with a similar form factor. Continuous Flow Elevators will free up floor space in case palletizing lines, logistics, and warehousing, or in work-in-process storage applications by transferring product to an overhead conveyor section. Elevators are also a great way to create aisleways, clearance for forklifts, or transfer products between floors. Extruded Aluminum Frame, Optional Stainless Steel Construction, Custom infeed and discharge heights available • The standard configuration will convey 20-30 lb cases at a rate of 20-25 cases/minute. • Elevation changes of 20 feet or more are common, though payload capacity and overall size of the elevator/lowerator can be customized as needed.
