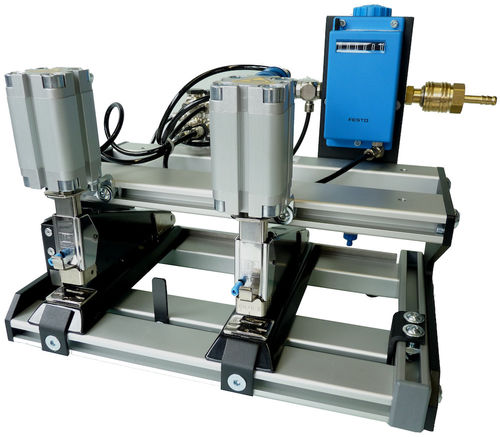

Tabletop stapling machine TH 210/2

pneumaticfor cardboard boxespaper bags

TH 210 tabletop staplers are used for fixing thin cardboard (cardboard headers or cardboard tabs) onto plastic bags, paper bags or blister packs. Standardly, the tabletop stapler is equipped with two insert staplers (frontloaded), each with a capacity of 210 staples. 2 stapling operations simultaneously. Technical Description Pneumatic stapling unit with an adjustable stopper up to a depth of 85 mm. As of the second pneumatic stapling unit, any further stapling units can be deactivated individually with a sliding valve. A counter can be installed optionally. • front loading. • capacity 210 staples / unit. • open and closed stapling. • triggering by an adjustable stopper or stapling release via a foot valve (PF). • adjustable depth 85 mm. • distance between two staples: min. 45 - max. 200 mm. • a sliding valve as of the 2nd. stapling unit. • with pneumatic servicing unit. • optional with counter. for staples: 66/6 = 6 mm leg length 66/8 = 8 mm leg length Tabletop staplers are also available in special widths. Up to 5 stapling units can be mounted.
