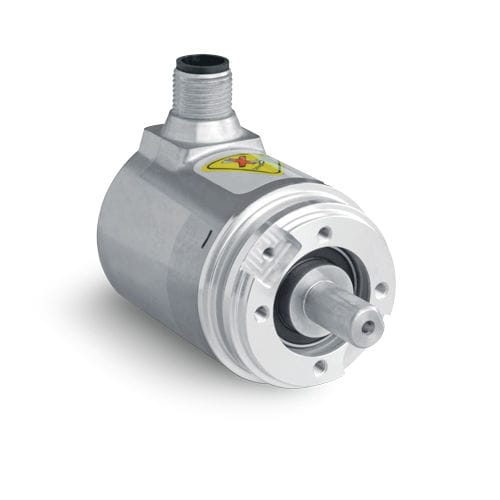

Absolute rotary encoder WV3650M

magneticsingle-turnmulti-turn

compact rotary encoder with solid shaft and analog interface The AV3650M rotary encoder is an absolute magnetic single- and multi-turn rotary encoder, which impresses with its extremely compact design. It is particularly robust and resistant to vibrations. Thanks to its high protection class up to IP67 and a temperature range of -40° C … +85° C, it is also suitable for demanding industrial applications. The particularly small design with a diameter of only 36 mm predestines the rotary encoder for use in applications with limited installation space. The analog current or voltage outputs can be adjusted to any measuring range thanks to the teach-in. Absolute wear-free magnetic encoder Multiturn without gearbox and without battery Current or voltage output interfaces Extremely compact and very robust design IP67 protection class
