Water cleaning system LAS

automaticindustrialprocess

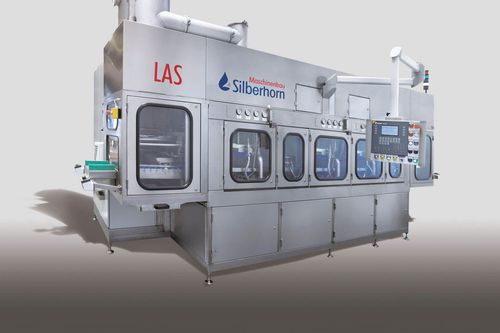

For individual parts Maximum output High cleaning standards Purposeful cleaning of outer and inner face Machine highlights The Silberhorn LAS Continuous Cleaning System offers a short cleaning cycle and, as a result, a maximum output for serial and mass production. Clocked transport by spindle system. Manual loading or integration into the production line Its space-saving design and the fact that it can be easily integrated in any process flow are additional advantages of the LAS. Multistage system for cleaning, rinsing, conservating, hot air and vacuum drying as well as demagnetization. Ease of maintenance guarantees high availability All machine parts are made of stainless steel. Hinged Covers with gas pressure antishock for easy acces to media containers. Insulation on all sides of the container and the process chamber, as well as on the filters and pipelines ensures low energy costs on the one hand and provides important industrial safety on the other. Jetting needles move in and out of the sections to be cleaned. Reduced carryover due to separated working zones Stand-by mode Individual fittable as required Component parts & options Drip tray according to german law (WHG § 62) Bag filter Candle filter Magnet separator Vacuum evaporator for cleaning agent Gravity oil separator VE-water generator Pump-off device Media heating with hot water Sampling unit Media re-dosing Waste steam capacitor, cooling with air or water Automatic feeding and discharge • Vacuum drying system Infrared heating system Self-cleaning system Remote controlled maintenance
