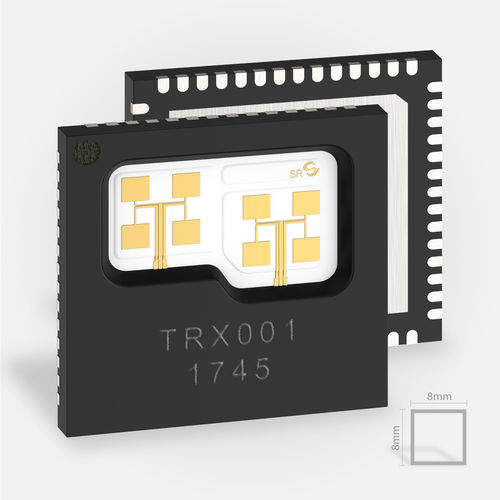

Radar transceiver TRX_120_001

IC

The radar MMIC TRX_120_001 deploys a hybrid integrated patch antenna concept to support the directivity of the radar beam. The bar die itself can also be combined with an individual antenna solution at customer side. Please also see our monolithically integrated MMIC radar TRX_120_002. Application The radar chips provide measurement signals for distance and speed measurement for objects as an analogue signal. Including a subsequent external signal evaluation at customer side possible applications are the investigation of a material surfaces, the measurement of layer thicknesses and other properties of the measurement objects. The main application area of the 120-GHz transceiver radar front end is for short-range radar systems with an operation range of up to 10 meters. By using dielectric lenses or mirrors, the range can be increased beyond 100 metres. No handling of high frequencies on PCB In the radar front end, the high-frequency radar signal is already converted to a smaller frequency in the IC. It is output as an analogue signal with a frequency of max. 2 GHz. This allows for routing and signal processing of all signals on cost-efficient PCBs. It can therefore be implemented on standard FR4 boards and combined with other IC components for control loops, for voltage stabilization, frequency modulation and AD conversion.
