Analog receiver RX_024_004

radar

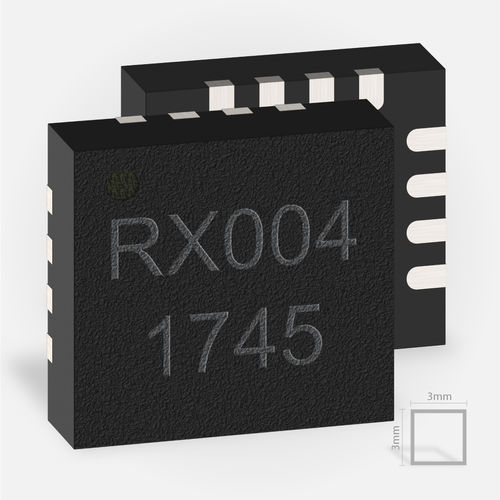

The RX_024_004 is an integrated ultra-wide band (UWB) receiver in the 24 GHz frequency range. Its frequency band is between 23 GHz to 29 GHz. It therefore can fully exploit the 24 GHz ISM band. The intrinsic bandwidth of the RX_024_004 enables high-resolution measurements with a resolution in the range of 25 mm. For a deployment beyond the international accepted ISM band at 24 GHz please refer to national and international regulations for the respective transmitters! The RX_024_004 features an analogue signal output, a low noise amplifier with gain control, a homodyne quadrature mixer, a poly-phase filter and a local oscillator input buffer. This MMIC is available as bar die and in QFN16 package. Applications include the combination with other transmitter sources for detection of RF signals. It can also be used as a passive receiver to detect RF signals from other sources.
