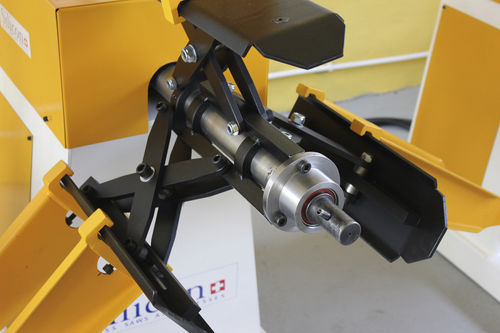

Motorized coiler MOT01
tape

Motorized coiler - MOT01 - Silicon - tape
Motorized coiler - MOT01 - Silicon - tape
Motorized coiler - MOT01 - Silicon - tape - image - 2
Motorized coiler - MOT01 - Silicon - tape - image - 3
Motorized coiler - MOT01 - Silicon - tape - image - 4
Motorized coiler - MOT01 - Silicon - tape - image - 5
Motorized coiler - MOT01 - Silicon - tape - image - 6
Add to favorites
Compare this product


Characteristics

Operation
motorized
Applications
tape

Description

Synchronized easily with punching line Coilers motorized, with central expansion Coilers run both directions, forward and reverse Remote control of all functions with staus display Speed from 0.1 RPM to 30 rpm Motor with gear reducers High frequency inverters for fine RPM tuning . Coiler max. load 1 ton Coilers Strip width up to 300 mm Inner diameter min 250 mm max. 500 mm Outer diameter max. 1300 mm Power 0.37 KW Dimension 1.200 mm x 1.200 mm height 1.600 mm
