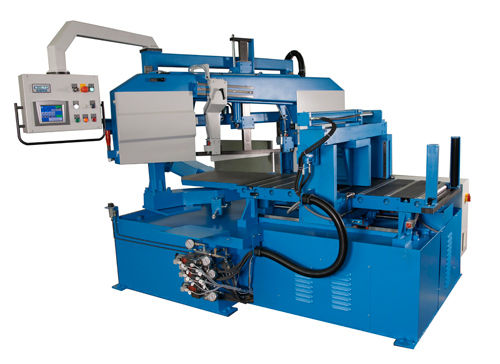

Band saw OL 500/800 GAP

horizontalfor metalsfully-automatic

Fully automatic machine for straight and miter cutting; Material feeding – by a ballscrew couple, carriage stroke – 500 mm; Material clamping – hydraulically, long stroke cylinders, clamping force variable control; Automatic sawbow lifting over the material – hydraulically; Saw blade tensioning – hydraulically; Saw blade feeding – hydraulically, cutting force variable control; Main motor revolutions – frequency controlled; Automatic material finding and feeding device positioning by a laser gauge; Automatic bandsaw guide adjusting as to the material size; Screw type chip removal conveyer; Controller with a control panel with opportunity for 50 programs choice; Digital display for cutting angle reading;
