Blow-off nozzle 705
compressed airmultidropstainless steel

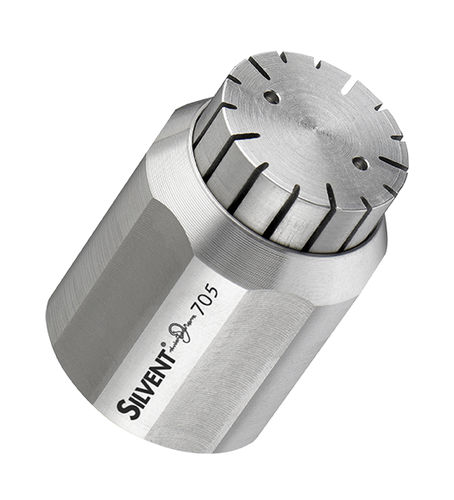

Blow-off nozzle - 705 - SILVENT - compressed air / multidrop / stainless steel
Blow-off nozzle - 705 - SILVENT - compressed air / multidrop / stainless steel
Blow-off nozzle - 705 - SILVENT - compressed air / multidrop / stainless steel - image - 2
Blow-off nozzle - 705 - SILVENT - compressed air / multidrop / stainless steel - image - 3
Add to favorites
Compare this product


Characteristics

Function
blow-off
Fluid
compressed air
Stream
multidrop
Material
stainless steel
Other characteristics
NPT, with aerodynamic slots
Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Media temperature

Min.: 0 °C
(32 °F)

Max.: 400 °C
(752 °F)

Description

SILVENT 705: specially made entirely of stainless steel with aerodynamic slots to allow optimal utilization of compressed air while keeping the noise level to a minimum. Blowing force approx. 5 times stronger than SILVENT 701 (15 N (3.3 lbs)). Used in industries that require high blowing forces, e.g. steel mills. Withstands high ambient temperatures. Part of SILVENT's 700 series together with 701, 703, 710 and 720. Fully meets OSHA safety regulations and EU Machine Directive noise restrictions. Technical data Replace open pipe Ø (inch) - 3/8 Blowing force - 3.3 lbs Air consumption (scfm) - 55.9 Sound level (dB(A)) - 92 Nozzle technology - Slot Material (nozzle) - 1.4305 (303) Connection - NPT 1/2" Connection type - Female Weight (lbs) - 0.119
