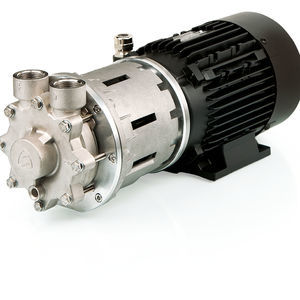

Regenerative turbine pump DC-24V serieswatercondensatefor coolant
Add to favorites
Compare this product
Characteristics
- Technology
- regenerative turbine
- Fluid
- water, condensate, for coolant, oil
- Operation
- with brushless DC motor
- Mobility
- stationary, mobile
- Domain
- industrial, for the chemical industry, for water treatment, for the pharmaceutical industry, agriculture, for the automotive industry, for the construction industry, for renewable energy, for the glass industry, for the semiconductor industry
- Voltage
- 24 V
- Other characteristics
- compact, with mechanical seals, standard, low-noise level, for fluids
- Flow
Min.: 1 l/min
(0.26417 us gal/min)Max.: 233.33333 l/min
(494.40533 us gal/min)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 3.5 bar
(50.763 psi)- Head
Min.: 0 m
(0'00" )Max.: 35 m
(114'09" )- Power
0.17 kW
(0.23 hp)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 90 °C
(194 °F)- Length
187 mm, 239 mm
(7 in, 9 in)- Height
82 mm
(3.23 in)- Weight
2.2 kg, 2.4 kg, 2.6 kg
(4.85 lb, 5.29 lb, 5.73 lb)
Description
DC-24V
Regenerative turbine electric pumps, DC-Brushless motor
Description
Our regenerative turbine pumps with brushless motor DC-24V come from the need to install pumps into systems where a DC network is native, where a compact product – if compared with standard IEC-asynchronous motors – with extended lifetime is required.
haracteristics
Continuous duty S1.
DC Brushless motor, Sensorless type, without electronic control board.
Protection IP54.
Working tolerance: +/- 10%.
Normal priming, manometer suction up to 5m.
For clear waters/oils and non-aggressive dilutions, without abrasive substances.
