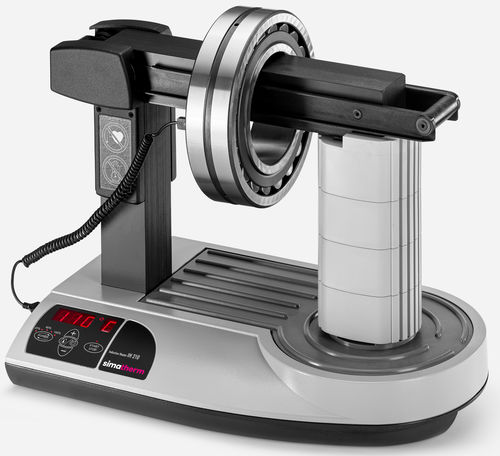

Large-diameter induction heater simatherm IH 210

for bearingsfor parts assemblyfor workpieces

Heat large rolling bearings up to 300 kg The most powerful table-top heater The IH 210 is suitable for heating large workpieces and rolling bearings weighing up to 300 kg. The IH 210 is supplied with two yokes as standard. The sliding yoke allows easy loading and unloading of the bearing. As a special version, the IH 210 is equipped with fan cooling (IH 210F) for continuous operation or even for a larger working area (IH 210XL). For rolling bearings weighing up to 300 kg Extremely simple operation thanks to the sliding yoke Available for voltages of 200, 400–480 and 500–575 V Induction coil outside of the housing, shortens the heating times and reduces energy consumption Particularly compact design - including the yokes only 75 kg in weight Special version with ventilation or larger working area area possible on request Automatic demagnetization 5-stage power consumption in combination with smaller yokes, allows smaller bearings to heat up safely and quickly with less energy For workpieces with an inner diameter of 60 to 640 mm Can heat a 210 kg bearing from 20 °C to 110 °C in 20 minutes, thus saving time and energy Industry target groups and applications Fabrication and assembly General mechanical engineering Gearbox construction (vehicles and industry) Pumps Hydraulic equipment Electric motor construction Conveyor and conveying systems General operations maintenance Metal processing industry Paper and cardboard factories Textile industry Larger printing plants Food industry Building services Vehicles (buses, trucks, rail vehicles) Construction machinery Forklifts, storage equipment / lifting devices Typical components which can be heated with the VOLCANO Gears
