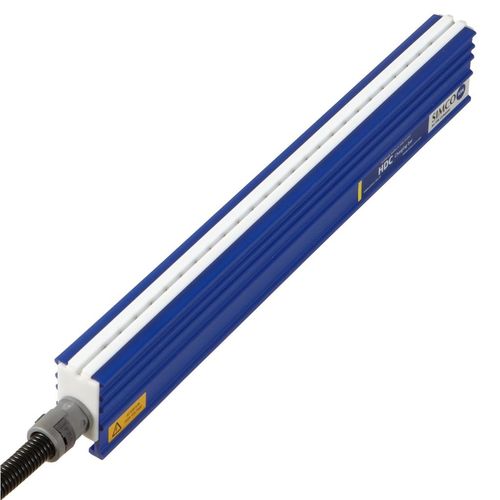

High-voltage detector HD DET

pinholeperforationLED

In order to detect perforations in a moving material web, this special electrode is equipped with a resistance per emitter. When a perforation passes the electrode, there will occur a controlled spark over. This is detected by the associated CM5 high voltage generator and is communicated with an output signal and the flashing of the red LED. - Detection of perforations over a large area - Detection of very small perforations possible Housing - ABS/PTFE Cable - low voltage cable, standard M12 connector Input power - 24 V DC, <0,5 A Emitter pins - special alloy Max detection frequency - 25 Hz Signal - Multicolour LED: -Green, signal ''operation OK'' - -Red, signal perforation detected Signal output - Optocoupler Control voltage - 0-10 V of 0-24 V Ambient temperature - 0 - 55°C Use circumstances - industrial Protection classification - IP 54
