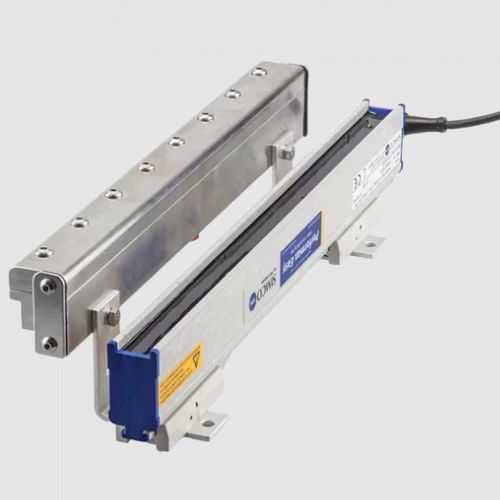

Ionizing air knife for mobile applications

industrialaluminum

AIR KNIFE WITH THE PERFORMAX EASY IONISING BAR The Airknife with Performax IQ Easy is especially useful for situations where the ionisation or cleaning needs to be mobile s.a. cleaning parts with a robot. With the 24V connection it is easy to install in such applications. The Airknife with Performax IQ Easy is standard available in 4 lenghts, 150, 310, 460 and 610 mm. Longer combinations on request. Working distance: 3000 mm max Removes dust and other contaminations and neutralises the static charge and prevents retraction contaminants Installation possible on moving machine parts such as a robot arm Shockless touchable emitters Working distance 3000 mm max. Working width Standard: 150 310 460 610 mm lengths upto 610 mm on request Housing material Aluminium/Reinforced plastic Inner bar material Potting Emitter pins Special alloy Cable Low voltage cable Weight 4 kg/m Ambient temperature 0 - 55°C Use circumstances Industrial Operating voltage 24 V DC Air consumption On request Pressure Max. 10 bar Airconnection 1/4” BSP
