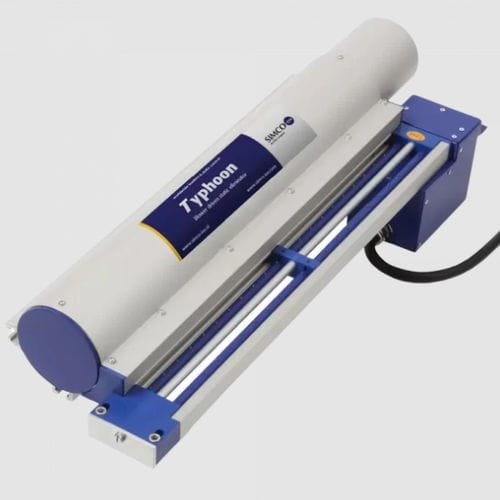

Anti-static bar P-SH-N-EX

TYPHOON WITH THE P-SH-N-EX IONISING BAR The airknife is constructed of extruded aluminium with incorporated mounting grooves. This design provides a precise air volume over the entire width of the airknife. In the airknife tube a high air pressure appears and is flowing out of the airknife narrow outflow opening. The anti-static bar produces positive and negative ions which are blown onto the surface by the airknife. The electrons will now be exchanged, which causes the surface to be neutralised and the impurities to be removed. For use in hazardous zones, the Typhoon with the P-Sh-N-Ex anti-static bar is approved. Working distance up to 2000 mm Surface cleaning Low operational cost Low noise Incorporates Simco-Ion anti-static bars which quickly neutralize static, facilitating easy removal of particulate Clean, uniform, high-velocity ionised air provides ‘‘one-step’’ cleaning Direct-drive motors require little or no maintenance Anodised finish for corrosion protection Connection for pressure sensor New design extruded aluminium profile Cost efficient versus compressed air Two mounting grooves Small blower/ low noise level Approved for use in explosion hazardous zones Working distance 2000 mm max. Working width on demand Housing material Aluminum / steel Ionizing bar material PVC Emitter pin special alloy Cable Neoprene Weight Basis 2 kg + 4,3 kg/m Ambient temperature 0 - 40 °C Use circumstances industrial Operating voltage 7 kV AC Air connection 75 mm Ø U primary 230V 50Hz Suitable power unit Integrated Approval UL, ATEX ATEX category II 2 GD Ex smb IIB T4 Ex mD 21 T135C ATEX certificate BAS00ATEX2162X
