Cleaning nozzle

blow-offionizing airflat spray

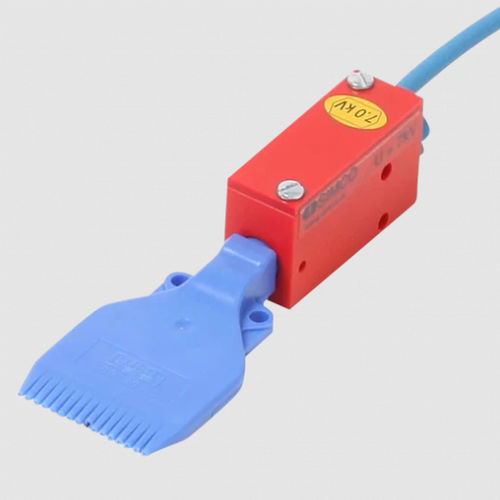

The Flat ionizing air nozzle is used to clean and neutralize electrostatically charged surfaces. The use of compressed air allows awkward places to be neutralized and cleaned as well. Connected to a Simco power unit, the ionizing air nozzles produce an air flow which is rich in positive and negative ions. When this air flow is pointed to an electrostatically charged area, electrons are exchanged until the area is neutralized. This makes that the material is neutralized during the blow-off process and prevents the blown-off particles from being re-attracted. The current of the Flat Nozzle is limited, so that the emitter point is safe to touch. The Flat Nozzle is especially suitable for neutralising at the feeding and delivery sections of machines in the printing industry. Needed High-Voltage Power Supply for operation: A-unit A2A7S Flat air stream Sheet separation Surface cleaning Low noise Working distance: 50-300 mm Air consumption: 5 Nm3/h using 1 bar Max. pressure: 6 bar Shockless touchable emitters Working distance 50 - 300 mm Housing material ABS and PVC Ionisation point Special alloy Cable PVC and PE Weight 0,23 kg incl. 3 m HV cable Use circumstances Industrial Max. current from emitter to earth < 0,3 mA Airconnection 1/8” BSP Operating voltage 7 kV AC Suitable power unit A2A7S
