4G wireless module A7602E-H-PCIEA

USBLTEPCIe

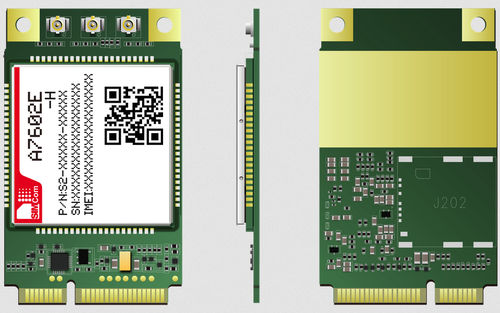

The A7602E-H-PCIEA is a LTE CAT4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate. The A7602E-H-PCIEA adopts mini PCIE form factor and consists of a A7602E-H module and a mini PCIE adapter board. It is easy for customers to integrate. The A7602E-H-PCIEA supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7600 series modules. Meanwhile the A7602E-H-PCIEA integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc. Product Advantages - Support Analog Audio. - Abundant software functions: FOTA, LBS, SSL. - AT commands of the A7602E-H-PCIEA are compatible with the SIM7600 Series modules.
