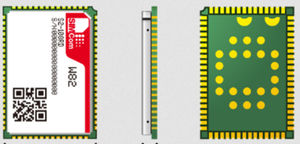

Bluetooth WiFi module W80

W80 is a small, low-power, Wi-Fi & BT module based on Qualcomm QCA-6391 chipset. The module conforms to IEEE standard 802.11a/b/g/n/ac/ax. The module is integrated with the WLAN/BT processor, BT baseband and 2.4G/5G RF transceivers. It support data communication between SIMCom 5G module SIM8200G through PCIe interface. The module can be used in 5G CPE, mifi, car networking, router, and other wireless terminals. Product Advantages • Support IEEE Standard protocol of 802.11a/b/g/n/ac/ax • Support 2.4GHz and 5GHz • Support BT 5.1 and BLE • Support 2x2+2x2 MU-MIMO Product Details General Features • WLAN Frequency 2.4GHz/5GHz • RF Supply voltage range: 3.3V ~ 4.25V, Typ: 3.8V • Operation temperature: -40℃ ~ +85℃ • Dimensions: 17*24*2.9mm • Weight: 2g • WLAN Standard: IEEE802.11 a/b/g/n/ac/ax, 2x2+2x2, dual MAC • Modulation Mode: CCK, BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM • Encryption Mode: WPA3 • Operator Mode: AP,STA • BT Protocol: BT 5.1 - Tx Power(2 x 2) • 802.11ac/MCS9 _40： 12dBm（2GHz） • 802.11ax/MCS11_40 ： 12dBm（2GHz） • 802.11ac/MCS9 _80： 12dBm（5GHz） • 802.11ax/MCS11_80 ： 12dBm（5GHz） Rx Sensitivity (2 x 2) • 802.11ac/1SS MCS9_40： -64.5dBm（2GHz） • 802.11ax/1SS MCS11_40： -64dBm（2GHz） • 802.11ac/2SS MCS9_40： -62.5dBm（2GHz） • 802.11ax/2SS MCS11_40 ： -61.5dBm（2GHz） • 802.11ac/1SS MCS9_80： -62dBm（5GHz） • 802.11ax/1SS MCS11_80： -61dBm（5GHz） • 802.11ac/2SS MCS9_80： -58.5dBm（5GHz） • 802.11ax/2SS MCS11_80 ： -58dBm（5GHz）
