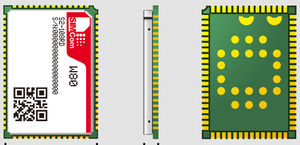

Bluetooth WiFi module W58

W58 is a small, low-power, low-cost Wi-Fi & BT module based on Qualcomm QCA-9377-3 chipset. The module can be used in car networking, wireless routing, and other wireless terminals. The module conforms to IEEE Standard 802.11a/b/g/n/ac. The module is integrated with the baseband, PA and 2.4G/5G RF transceivers, and supports data communication between SIMCom LTE CAT-4 modules SIM7600X-H series through SDIO3.0 interface. Product Advantages - Support IEEE Standard protocol of 802.11a/b/g/n/ac - Wide operation temperature range (-40°C to +85°C) - Max Access Point is 30 Product Details General Features Frequency band: 2.412 ~ 2.484 GHz 5.725~5.85GHz Supply Voltage Range: 3.2V~ 3.4V , 3.3V Typ. Temperature Range: -40℃ to +85℃ Dimension: 16.6 *13.0*2.1 mm Weight: 1g Modulation Mode: DSSS,CCK, OFDM,BPSK,QPSK,16QAM,64QAM,256QAM Encryption Mode: WEP,TKIP,AES,WPA-PSK,WPA2-PSK AP (Max Access Point): 30 Operator Mode: AP, STA Max Date Rate 802.11b：11Mbps 802.11g：54Mbps 802.11n_HT20：72.2Mbps 802.11n_HT40：150Mbps 802.11ac_HT20: 86.7Mbps 802.11ac_HT40: 200Mbps 802.11ac_HT80: 433.3Mbps - Transmitting Power 802.11b/11Mbps: 18dBm 802.11g/54Mbps: 15dBm 802.11n_HT20/72.2Mbps：11dBm 802.11n_HT40/150Mbps：10dBm 802.11ac_HT20/86.7Mbps: 13dBm 802.11ac_HT40/200Mbps: 9dBm 802.11ac_HT80/433.3Mbps: 8dBm Rx Sensitivity 802.11b/11Mbps: -94dBm 802.11g/54Mbps: -78dBm 802.11n_HT20/72.2Mbps: -69dBm 802.11n_HT40/150Mbps: -63dBm 802.11ac_HT20/86.7Mbps: -65dBm 802.11ac_HT40/200Mbps: -59dBm 802.11ac_HT80/433.3Mbps: -56dBm
