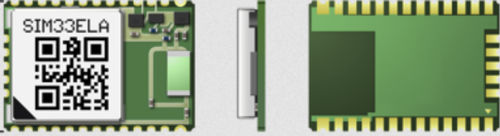

GPS GNSS module SIM33ELA

GLONASSQZSSGALILEO

SIM33ELA is a high performance and reliable GNSS module. It is a standalone GNSS module with an embedded linear antenna on it. It is designed with MTK’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption. And with embedded antenna in LCC type, it is very easy for customer’s applications design. SIM33ELA provides simultaneous GPS, GLONASS, Galileo and QZSS open service L1 reception capability. With 33 tracking channels and 99 acquisition channels, SIM33ELA can acquire and track any mix of multiple satellite signals. Combining advanced AGPS called EASY™ (Embedded Assist System) with proven AlwaysLocate™ technology, SIM33ELA achieves the highest performance and fully meets the industrial standard. Product Advantages - Support EASY™ self-generated orbit prediction - Support EPO™ orbit prediction - Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS) - Support Jamming Removing - Low-noise amplifier has been integrated Product Details Mechanical data Dimensions: 14*9.6*2.15mm Weight: 0.5g Features Support EASYTM self-generated orbit prediction Support EPOTM orbit prediction Support AGPS Support Jamming Removing Low-noise amplifier has been integrated Interfaces Serial interfaces: UART Digital I/O: Pulse-per-second (PPS) GPIO Protocols: NEMA PMTK - Performance data Max. update rate: 10Hz Sensitivity¹ Tracking: -165 dBm Reacquisition: -160 dBm Cold starts: -147 dBm Time-To-First-Fix² Cold start: 28s Warm start: 26s Hot start: <1s EPO Assist: 13s（CTTFF) Accuracy Automatic Position³: 2.5m CEP Speed⁴: 0.1m/s
