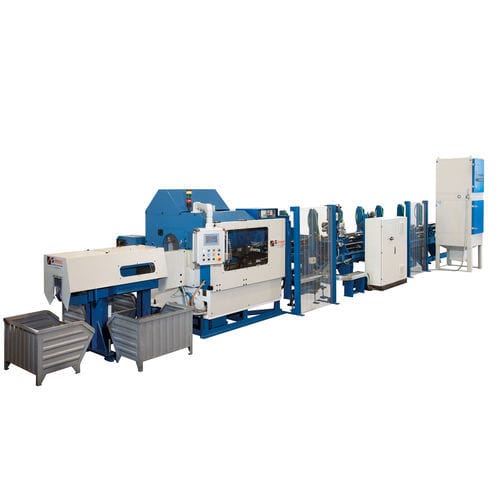

Circular saw Simax 80

for metalsfor barsfor the automotive industry

Fully automatic bar cutting machine by Simec with a high-throughput Widia saw blade. This cutting machine is used for the production of both round and square bars. It is completed with an automatic loading system that feeds the cutting unit on a continuous cycle. Simax 80 is the ideal solution to cut solid bars; it has a rigid machine body weighing 4500 kg. The cutting unit travels on roller sliding blocks and the movement is controlled by a brushless motor with recirculating ball bearings for high productivity and excellent surface quality of the cut. • Square bar : 10x10 – 60x60 • Min. cutting length : 10 mm • Max. cutting length : 1500 mm • Cutting tolerance : +/- 0.1 mm • Cutting speed : 0 – 3000 mm/min • Head travel speed : 20 m/min • Gripper travel speed : 24 m/min • Gripper stroke : 650 mm • Distance to end of bar : Max 60 mm • Machine weight : 3500 kg • Blade motor : 11 kW • Cutting plane height : 1000 mm • Cutting tolerance +/- 0.1mm. • Ceramic-coated blade guide. • Cutting stability achieved by setting the amount of material removed by each tooth. • Long-life blade. • Reduced blade vibration thanks to clutch brake. • Blade lubricated with oil mist. • Central lubrication of sliding elements. • Low noise emission. • Movement of feed carriage controlled by a brushless motor with recirculating ball screws. • Tilting feed carriage to prevent material scratching. • Touch-screen interface between machine and operator. • Siemens PLC and inverter. • Kollmorgen brushless motors and drives.
