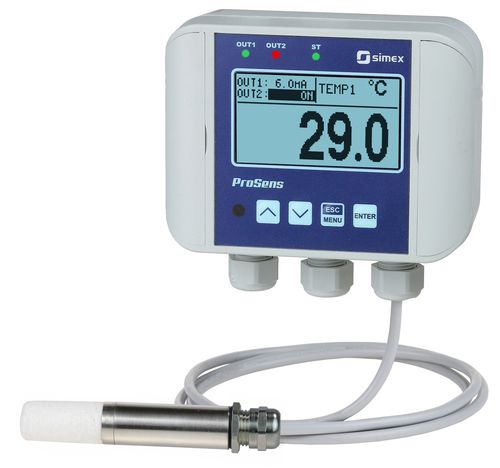

Relative humidity transmitter ProSens

wall-mountscrew-inwaterproof

transmitter, display, meter and controller in one package temperature or temperature and humidity cable probe (gland or connector), Ø18 mm, L=90 mm, stainless steel 316L, PTFE filter cap 1 or 2 universal inputs: 0/4-20 mA, 0-10V, 0-150 mV, RTD or TC 0, 1 or 2 REL outputs (electronic NO) 0, 1 or 2 analogue outputs, passive or active RS-485 / Modbus RTU option: very clear 2.9’’ graphic LCD display, 128 x 64 points, with backlight free configuration software S-Config ProSens is a new series of modern industrial devices, which integrates sensors, converters, meters and controllers functionalities. Using the latest miniaturisation technologies these compact devices are able to be equipped with two independent universal inputs, two binary or two analogue outputs, as well as communication port RS-485 with Modbus protocol. A large built-in display and output signals mean that the ProSens units find applications in control systems. There are many industrial applications, where ProSens can act as stand-alone controller. It can also cooperate with master devices via Modbus protocol, being part of big network, which makes it perfect device for distributed monitoring system.
