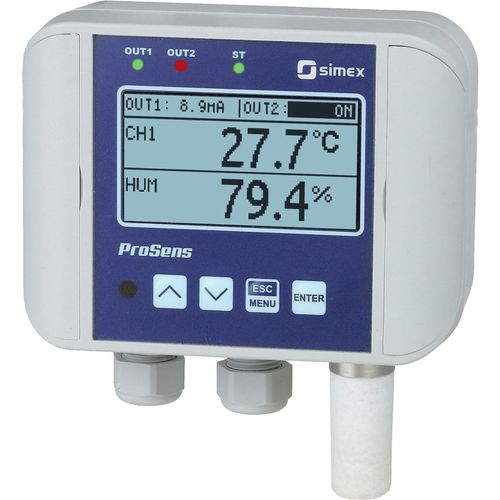

Heating controller for buildings ProSens QM-211

multifunctional

ProSens is a new line of modern industrial instruments, which integrates sensors, converters, meters and controllers functionalities. Using the latest miniaturisation technologies these compact instruments are able to be equipped with one independent universal input, two binary or two analogue outputs, as well as communication port RS-485 with Modbus protocol. Model QM-211 has integrated radial temperature or temperature and humidity probe, Ø 18 mm, L=40 mm, PTFE filter cap. A large built-in display and output signals mean that the ProSens line units find applications in control systems. There are many industrial applications, where ProSens can act as stand-alone controller. It can also cooperate with master devices via Modbus protocol, being part of big network, which makes it perfect instrument for distributed monitoring system. Probe parameters - temperature: -30...80°C (typ. error ±0.5°C @ -10...80°C) temperature and humidity: temperature measuring range: -30...80°C (typ. error ±0.2°C @ 10...60°C; 0.4°C @ -30°C; 0.7°C @ 120°C); humidity measuring range: 0...100% RH (typ. error ±1.8% RH; 10...90% @ 25°C) Input type - universal Input range - 0/4...20 mA 0...60 mV, 0...75 mV, 0...100 mV, 0...150 mV 0/1...5V, 0/2...10V Pt100, Pt500, Pt1000: -100...+600°C TC K: -200...+1370°C, S: -50...+1768°C, J: -210...+1200°C, T: -200...+400°C, N: -200...+1300°C, R: -50...+1768°C, B: +250...+1820°C, E: -200...+1000°C
