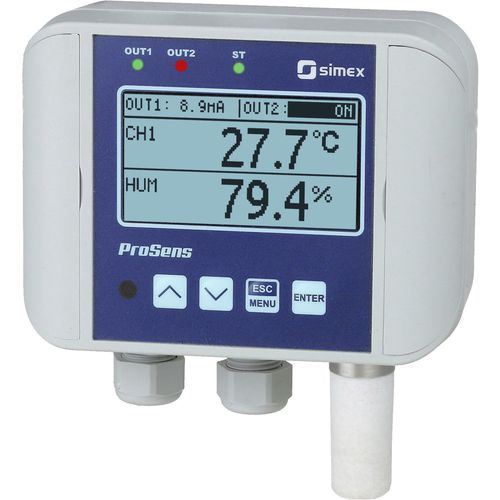

Temperature regulator with humidity control ProSens QM-211

digitalcompact

transmitter, display, meter and controller in one package integrated radial temperature or temperature and humidity probe, Ø18 mm, L=40 mm, stainless steel 316L, PTFE filter cap 1 or 2 universal inputs: 0/4-20 mA, 0-10V, 0-150 mV, RTD or TC 0, 1 or 2 REL outputs (electronic NO) 0, 1 or 2 analogue outputs, passive or active RS-485 / Modbus RTU option: very clear 2.9’’ graphic LCD display, 128 x 64 points, with backlight free configuration software S-Config ProSens is a new line of modern industrial instruments, which integrates sensors, converters, meters and controllers functionalities. Using the latest miniaturisation technologies these compact instruments are able to be equipped with one independent universal input, two binary or two analogue outputs, as well as communication port RS-485 with Modbus protocol. Model QM-211 has integrated radial temperature or temperature and humidity probe, Ø 18 mm, L=40 mm, PTFE filter cap. A large built-in display and output signals mean that the ProSens line units find applications in control systems. There are many industrial applications, where ProSens can act as stand-alone controller. It can also cooperate with master devices via Modbus protocol, being part of big network, which makes it perfect instrument for distributed monitoring system.
