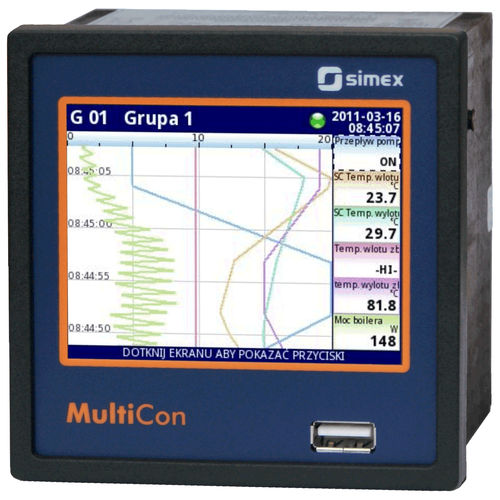

Multi-function controller MultiCon CMC-99

The MultiCon CMC-99 is a powerful and versatile compact-multichannel-controller with a capability to record data, if the recording function is requested and activated. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive. Although the MultiCon CMC-99 is build in a quite small housing, it can integrate up to 48 inputs, and its construction allows user almost free configuration by choosing up to 3 from 27 available input/output modules. Input type - depends on configuration: 9 universal inputs max. 48 analogue inputs max. 48 digital inputs max. 24 TC inputs max. 12 RTD inputs max. 12 counter / flowmeter / ratemeter inputs max. 1 digital input 24V DC mixed: analogue-NTC temperature mixed: analogue-digital Input range - 0/4...20 mA 0/1...5V, 0/2...10V 0...30V -10...25 mV, -10...100 mV, 0…600 mV, ±25 mV, ±100 mV 0...300Ω, 0...3kΩ Pt100, Pt500, Pt1000 (PN-EN): -100...600°C, Pt'50, Pt'100, Pt'500 (GOST): -200...600°C, Ni100, Ni500, Ni1000 (PN-EN): -60...180°C, Cu50, Cu100: -50...200°C, Cu'50, Cu'100 (GOST): -200...200°C TC K: -200...+1370°C, S: -50...+1768°C, J: -210...+1200°C, T: -200...+400°C, N: -200...+1300°C, R: -50...+1768°C, B: +250...+1820°C, E: -200...+1000°C 0-20 (1/sec.), 0-20 (1/min.), 0-20 (1/h) 4-20 (1/sec.), 4-20 (1/min.), 4-20 (1/h)
