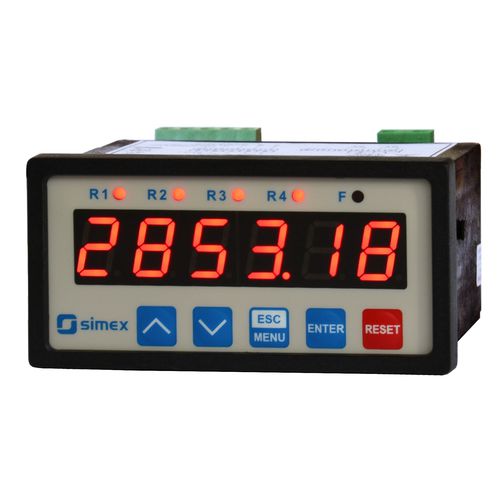

Pulse counter SLIK-94

binarycycledigital

universal counter with batching function 2 pulse counting inputs 1 programmable function input 4 counter reset sources 0, 2 or 4 REL / OC outputs prescaler and digital filter RS-485 / Modbus RTU free configuration software S-Config Universal programmable counter type SLIK-94 is equipped with many modern features required in simple and advanced automatic control systems. Two counting inputs (pulse inputs) can operate in few different modes (as two independent pulse inputs or single quadrature input). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or to stop counting without clearing. Build in RS-485 communication interface enables controlling of all settings by host, and allows use of unit in advanced network systems. SLIK-94 is equipped with independent clearing input. The device can be equipped with one relay (or OC type) output with independent threshold, which can be used to control external devices. The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
