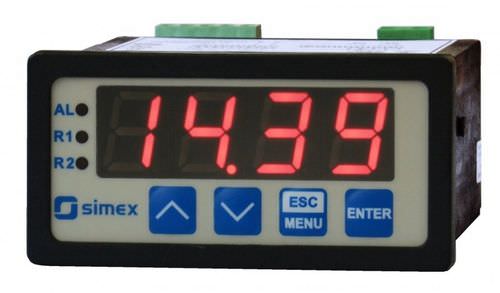

Process indicator SWS-73 series

digitalLEDpanel-mount

The SWS-73 is a simple digital panel indicator intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link. The displayed value may be collected from other device (in MASTER mode). The display brightness can be adjusted in 8 steps. The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems. Modbus RTU protocol is used to communication with device. The indicator can be configured with the local keyboard or free S-Config software via the RS-485 communication port. Input type - no input Output type - no output Power supply - 16...35V AC, 19...50V DC 85..260V AC/DC 11,4...15V AC/DC Display - LED, 4 x 13 mm, two-coloured LED, 6 x 9 mm, red Communication Interface - RS-485 / Modbus RTU Transmission parameters - 1200...115200 bit/s, 8N1 / 8N2 Operating temperature - 0...+50°C -20…+50°C
