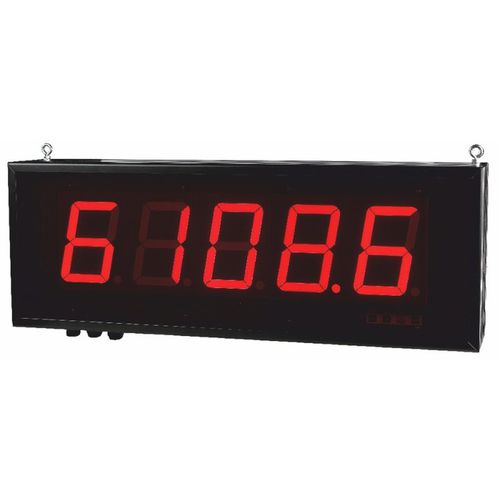

LED display SWS-W510 series

alphanumeric7-segment5-digit

The SWS-W510 is a simple digital panel indicator intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS 485 serial interface link. The displayed value may be collected from other device (in MASTER mode). The display brightness can be adjusted in 8 steps. The device has 4 buttons being used for main presets programming. To get high protection level, the keyboard is mounted under transparent cover. To allow user to change presets without opening the cover, an IR sensor is mounted. Remote controller keyboard is equivalent to the device keyboard. Modbus RTU protocol is used to communication with device. It is possible to order device with other communication protocol using RS-485 interface (special order required).The indicator can be configured with IR remote controller, local keyboard or free S-Config software via the RS-485 communication port. Power supply - 16...35V AC, 19...50V DC 85..260V AC/DC Display - LED, 5 x 100 mm, red Communication Interface - RS-485 / Modbus RTU Transmission parameters - 1200...115200 bit/s, 8N1 / 8N2 Operating temperature - 0...+50°C -20…+50°C Protection class - IP 30 Case material - aluminium methyl polimethacrylate (PMMA)
