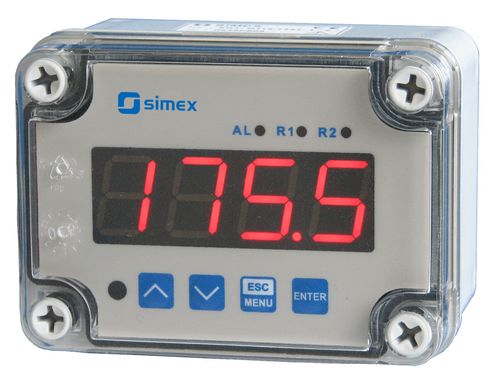

Process indicator SWS-N118 series

digitalLEDpanel-mount

The SWS-N118 is a simple digital panel serial indicator intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link. The displayed value may be collected from other device (in MASTER mode). The display brightness can be adjusted in 8 steps. Thanks to the tight housing with high (IP 67) protection degree, this device is particularly suitable for operations in harsh environments. The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems. The meter may be configured with no need to open the case, by using the remote controller or with free S-Config software via the RS-485 communication port. Input type - no input Output type - no output Power supply - 16...35V AC, 19...50V DC 85..260V AC/DC 11,4...15V AC/DC Display - LED, 4 x 20 mm, red LED, 6 x 13 mm, red Communication Interface - RS-485 / Modbus RTU Transmission parameters - 1200...115200 bit/s, 8N1 / 8N2 Operating temperature - 0...+50°C -20…+50°C Protection class - IP 67 Case material - ABS polycarbonate
