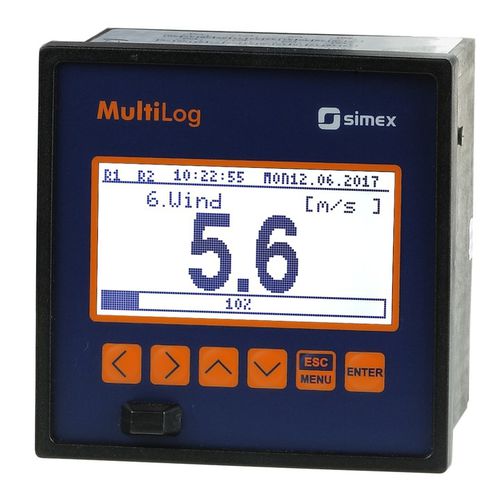

Temperature data-logger MultiLog SRD-99

USBwith screenmulti-channel

multichannel economical data logger MultiLog line universal inputs: RTD + TC or U + I 2 electronic relay outputs memory up to 3 000 000 records quick data transfer via ports: USB Host (USB flash drive), USB PC (wire), RS-485 (Modbus RTU) display measured values in °C or °F 12V AC/DC, 24V AC/DC or 85...260V AC/DC power supply white colour LCD (amber backlight has been discontinued) panel mount version free configuration and recording software The new MultiLog SRD-99 device is designed to record and display current values as well as to present technological parameters in the form of graphs. The device is equipped with up to eight universal inputs: temperature (RTD + TC) or analogue (mA + V), which enables connecting different types of sensors to one device, one pulse (digital) input for controlling the recording process; 2 electronic relays with max. load 24V AC (35V DC) 200 mA, USB PC port for direct (by cable) PC connection to share data and USB Host port (front or rear) for flash data storage and configuration transfer. White or amber colour LCD backlight available.
