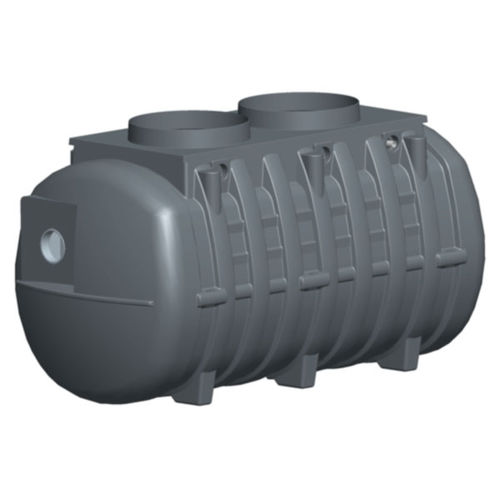

Hydrocarbon separator 6647

coalescingfor wastewater treatmentfor water treatment

Oil Separators 5mg/l with silt storage V100 An oil separator is a device designed to separate and store hydrocarbons in suspension in runoff water. The silt storage permits to trap a suspension matter (sand, gravel..). This oil separator without by-pass with a silt storage are perfect to treating water form covered car parks, petrol station, garages. For washing areas, provide a complementary V200 silt storage to obtain a volume of V 300. Reminder : the oil level alarm, additional piece of equipment, is mandatory unless special derogation from the local authorities. The operation of the oil separator is based on the separation by density difference insoluble polluants contained in the runoff. Sludge compartment allows to settle and trap suspended solids (> 200 microns). Coalescence system with its large surface area allows free oil concentrate in promoting their collison. Oil then rise to the surface. The sealing system prevents the risk of the releasing of hydrocarbons. Advantages - Designed in accordance with : EN 858-1 and EN 858-2 - Tank with 20 year anti-corrosion warranty - Tested and held in a saline environment - Resists on ground with a water table up to outlet level - Low weight - Easy handling - Removable coalescence and easy maintenance - Easy connections - Devices held in stock
