Level control system 4982

oil

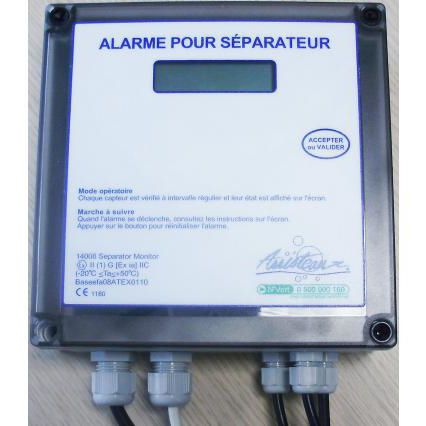

This alarm system detects the level of hydrocarbons in the separator compartment before clogging. The alarm is suitable for new sites where the power supply is easily accessible, making installation efficient and economical. Temperature : -20°C to 50°C 3 sensor inlets Voltage : 230 VAC +-10% Relay outlet : 230 Vac, 3A Box protection : IP65 Intrinsic Safety : [EX ia] IIC (-20°C ATEX Certification : Baseefa08ATEX0110X Length of probe cable : 5m Utilisation Visual and sound alarm for oil separators. This alarm system detects the oil level in the separator compartment just before shutter. The alarm is suitable for the new sites where the electrical supply is easily avalaible, the installation of the alarm is so efficient and economical. The control unit can control up to 3 sensors. The unit controls the connected sensors every 30 minutes (adjustable frequency). The current status is displayed on the 2X16 LCD screen located on the front of the unit. Oils are detected by conduction, the water behaves like a conductor while the oil behave like insulator. The sensor consists of two stainless steel parts, where one part is immersed in oil, a signal is sent to the control box which triggers the alarm. The control unit detects the alarm condition of the sensor, it comes in two versions : - one reported alarms with a visual sound signal. - the second transmits the state of the sensors by GSM (SMS on mobile phone). A central alarm signal, a modem, or others external alarm devices can also be connected to the relay.
