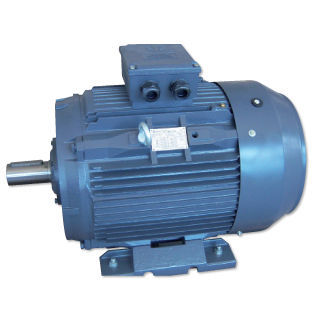

Three-phase motor EG SERIESasynchronous380 VIP23
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- asynchronous
- Voltage
- 380 V
- Protection class
- IP23
- Configuration
- squirrel cage
- Cooling mechanism
- air-cooled
- Applications
- for pump, industrial, blower, for compressors, for the mining industry, for crusher
- Other characteristics
- high-efficiency, low-noise, high-power, low-vibration, energy-saving
- Power
Max.: 800 kW
(1,087.697 hp)Min.: 160 kW
(217.539 hp)- Intensity
Max.: 1,458 A
Min.: 348 A
- Rotational speed
Max.: 1,485 rpm
(9,330.53 rad.min-1)Min.: 495 rpm
(3,110.18 rad.min-1)
Description
EG series (380V, IP23) motor is of closed squirrel cage three phase asynchronous motor (center height from 400mm to 500mm), which is lower voltage and high power.
The motor is of box like construction.
By removing the cover plates, the inside of the motor are visible and can be reached for maintence and repair.
The protection degree of the motor is of IP23 and the cooling method is of IC01.
The motor has such advantage as high efficiency, energy saving, low noise, lower vibration, light weight and reliable performance.
This motor is used to drive various mechanical equipments such as blowers, compressors, pumps, crushers. It can serve as the prime movers in coal mines, mechanical industries, power plants and various industrial enterprises.
The structure and the mounting type is of IMB3 with continuous duty (S1). The rated frequency is 50Hz.
