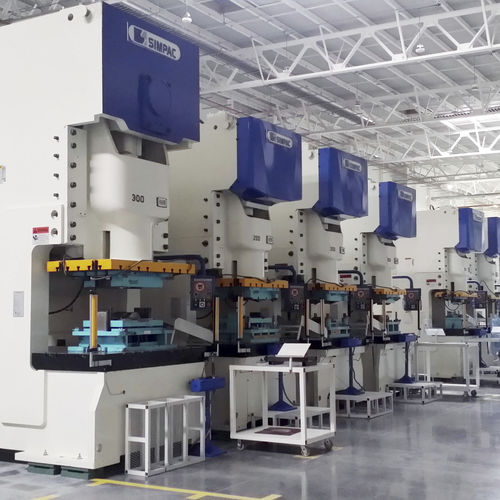

Mechanical press CS/ECS Series

stampingpunchingembossing

OVERVIEW (1) Type: C-Frame presses (2) Press capacity: 350~3,000 kN (3) Part size: Small (4) Slide kinematics: Crank motion (5) Application: Cutting, Stamping, Bending, Embossing, Forming DESCRIPTION C-frame presses are flexible solutions for the production of small parts. The C-shape provides good accessibility to the die space and is thus suitable for manual work as well as for automated, linked production processes. FEATURES&BENEFITS (1) The CX is the all-rounder among the C-Frame presses, while the CX is ideal for Punching and Cutting operations with a higher degree of automation (2) The Compact design requires a very small footprint, no foundation work and ensure good accessibility for maintenance (3) Operates as a single press of press line with transfer or robot line (4) when installed as a press line, the flexible combination of different tonnages enable the optimum adaptation to the specific requirments of the produced part (5) Solid, low-stress annealed press body in monobloc design with minimal frame deflection (6) The durable hydraulic clutch is wear-resistant and operates at a low decible range (7) A casting slide absorbs process-related vibratinos and thus protects press and dies (8) The 4-fold slide guiding ensures a high tilting rigidity (9) Hydraulic overload protection to protect the press and dies (10) Fast availability (production time as 12 weeks) STANDARD EQUIPMENT (1) Hydraulic overload protection (2) Automatic slide counter balancing (3) Vibration isolation with anti-vibration pad
