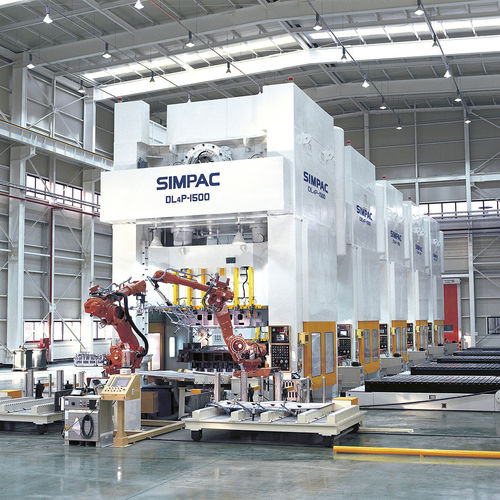

Mechanical press DTL Series

stampingdrawingcutting

OVERVIEW (1) Type: stamping presses (2) Press capacity: 3,000~26,000 kN (3) Part size: large size (4) Slide kinematics: Eccentric and Link (5) Application: blanking, stamping, bending, drawing and Forming DESCRIPTION Large presses for a wide range of large sized part Due to its drive-related slide kinematics, the Link driven DTL2/4 models are particularly suitable for drawing parts. The reduced forming speed increases the part quality and save press and dies FEATURES&BENEFITS (1) Flexible installation options as a single press in progrssice or Tandem line mode or as fully automated press line (2) Suitable for a wide range of applications from part drawing to thick plate blanking (3) The very solid, low-stress annealed press bodies are FEM-calculated and optimized by so-called "hot-spot analysis” in areas which are subject to higher loads (4) Motor, clutch/brake unit, lubrication system and controls are of Korean or Germany origin and guarantee a long service life, maximum dynamics and a good supply of spare parts (5) The slide guiding system ensures a high level of tilting rigidity and reduces the cutting impact during the cut through when it comes to the processing of higher-strenth material (6) Turneky forming systems with dynamic, compatible automation STANDARD EQUIPMENT (1) Hydraulic overload protection (2) Electrical slide adjustment (3) Automatic slide counter balancing (4) Vibration isolation with spring dampers (5) Press force monitoring(single force and sum force)
