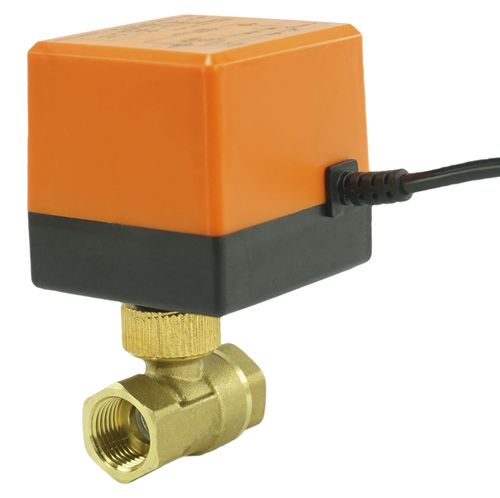

Ball valve D160-00116

electricshut-offfor hot water

Brass ball valve threaded standard port Elephant RP.BRASS.120.MM 232 PSI with electric actuated 110VAC without limit switches controls water, air, oil and other media compatible with the materials of construction. Ideal where lead free construction are required for potable drinking water as well as general industrial applications. Elephant electric actuated valves use power-to-open and power-to-close, stays in the last known position with loss of power. The actuator will rotate the output drive 90° to change the position of the ball valve. A manual override is provided for use in setup or power failure situations. The override is operated with a standard hex wrench. The housing is rated Type 3X (IP65). Heavy duty motor is integral to the actuator housing, providing the smallest physical size to power ratio of typical actuators on the market.
