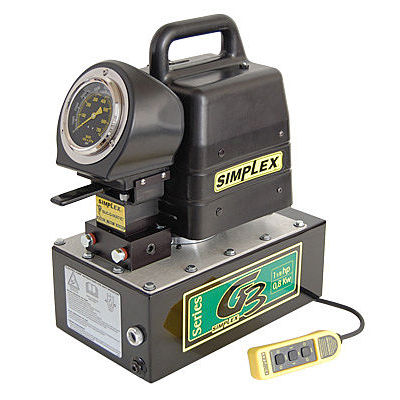

Electrically-powered hydraulic pump G3 series

Model # : G3 Series Name : Electric Power Pumps Order # : Use order matrix Max. Pressure : 10000 psi 1st Stage Flow : 650 cu. in. / min. 2nd Stage Flow : 46 cu. in. / min. Motor : 1.125 hp Weight : 38 lbs. Description * Powered by a 115V - 60Hz, 1-1/8 hp universal motor (21,000 rpm); low startup voltage, draws 16 amps at full load (230V models available). * Equipped with a 15’ remote power controlled pendant. * High performance two-stage pump provides higher cross-over pressure for faster cycle times and equipment operation; 46 cubic inches / minute @ 10,000 PSI. * Precision designed valve offers offer reliability and secure load holding; external adjustable relief standard on all types. * Reservoirs available in 1 - 10 gallons; welded steel design. * Ideal for use with small - mid sized hydraulic cylinders or tools. * Compact, lightweight design within its class, starting at 38 lbs.
